Build and publish REST and MCP service images

For prerequisites and package availability, see Install Apizr.

The official outerspace-apizr-oci extension builds a local service image from a direct repository exposure bundle and publishes it through a separate, explicit push operation. It does not build governed execution workers or install business dependencies. Install and enable it explicitly; the minimal Apizr environment does not acquire Docker, REST or MCP dependencies.

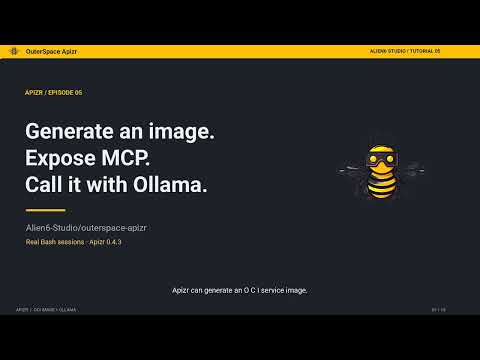

Watch: Build an OCI image and call its MCP tool with Ollama · 8:21

Follow a repository MCP bundle into an image, then use a small Python bridge to connect a local Ollama model to the container tool. The recording uses the 0.4.3 shop example; follow this guide for current commands.

Build an OCI image and call its MCP tool with Ollama — Alien6 Studio tutorial Watch the tutorial

English · Open on YouTube · Alien6 Studio. Use the written steps for the current release; a recording may show an earlier version.

Prerequisites and installation

Use Python 3.11–3.14, uv, Docker Engine with BuildKit/Buildx, and an explicit local Unix socket. The target is linux/amd64 or linux/arm64. Cross-platform builds require an already configured emulator; Apizr does not install one. Choose and review a Python base image with python, venv and pip, pinned by SHA-256 digest. The base, Docker binaries and dependency wheels remain trusted code.

Follow Install Apizr → choose a plugin profile with oci. Retain its workspace as $work, with core/ and the explicit plugins/ store. Reuse the exported locks; no source build or manual dependency closure is needed for installation. From that workspace:

export work="$PWD"
Advanced: build and prepare wheels from a source checkout

Build the two wheels, then leave the checkout. These preparation commands may access package indexes; installation through apizr plugins install is offline. The plugin gets its own copy of Apizr's validation code and Pydantic in its own locked environment. No Docker SDK is required anywhere.

work=$(mktemp -d)
uv build --wheel --out-dir "$work/plugin-wheels"
uv build --wheel plugins/oci --out-dir "$work/plugin-wheels"
cd "$work"
uv venv --seed --python 3.14 prepare
prepare/bin/python -m pip download --only-binary=:all: --dest plugin-wheels \
  plugin-wheels/outerspace_apizr-0.4.5-py3-none-any.whl \
  plugin-wheels/outerspace_apizr_oci-0.4.5-py3-none-any.whl
uv venv --python 3.14 core
uv pip install --python core/bin/python --offline --no-index \
  --find-links plugin-wheels plugin-wheels/outerspace_apizr-0.4.5-py3-none-any.whl

Create lock_wheels.py using the shared wheel-lock recipe below before continuing.

prepare/bin/python lock_wheels.py plugin-wheels plugin.lock
plugin_sha=$(prepare/bin/python -c 'import hashlib; from pathlib import Path; print(hashlib.sha256(Path("plugin-wheels/outerspace_apizr_oci-0.4.5-py3-none-any.whl").read_bytes()).hexdigest())')
core/bin/apizr plugins install plugin-wheels/outerspace_apizr_oci-0.4.5-py3-none-any.whl \
  --sha256 "$plugin_sha" --requirements plugin.lock --wheelhouse plugin-wheels \
  --plugins-dir "$work/plugins"
core/bin/apizr plugins enable outerspace-apizr-oci --version 0.4.5 --plugins-dir "$work/plugins"

The lock uses the existing restricted requirements syntax: name==version --hash=sha256:HEX, one SHA-256 per package, comments and continuations allowed. Includes, URLs, paths, index options, markers, extras and editable installs are refused. Wheel archive and startup-file protections are reused. Metadata identity and dependency headers retain their 64 KiB bound; unused long descriptions are not parsed or loaded. Compressed/expanded archive limits still apply.

Prepare server dependency locks

Plugin installation uses the exported locks. Building a generated server image also needs its own runtime wheel lock, prepared after generation for the target platform. This shared recipe also serves the optional source-build path above.

Create lock_wheels.py for the reviewed wheels downloaded for this interpreter and platform. It records the exact bytes; hashes establish integrity, not trust in the author. Keep one wheel per distribution and all transitive dependencies. Do not include sdists or unrelated wheels.

import hashlib
import sys
import zipfile
from email.parser import BytesParser
from pathlib import Path

lines = []
for wheel in sorted(Path(sys.argv[1]).glob("*.whl")):
    with zipfile.ZipFile(wheel) as archive:
        name = next(n for n in archive.namelist() if n.endswith(".dist-info/METADATA"))
        metadata = BytesParser().parsebytes(archive.read(name))
    digest = hashlib.sha256(wheel.read_bytes()).hexdigest()
    lines.append(f"{metadata['Name']}=={metadata['Version']} --hash=sha256:{digest}\n")
Path(sys.argv[2]).write_text("".join(lines))

Generate a bundle and prepare server dependencies

Use the existing Git workflow, with a reviewed commit, local readiness/exposure policies and a separate Git operator grant in git-operator.json matching the address, commit and default subdir .:

core/bin/apizr expose build rest --git "$REPOSITORY_HTTPS_URL" --ref "$COMMIT" \
  --operator-policy git-operator.json --policy exposure.json --readiness-policy readiness.json --output-dir rest-bundle
core/bin/apizr expose build mcp --git "$REPOSITORY_HTTPS_URL" --ref "$COMMIT" \
  --operator-policy git-operator.json --policy exposure.json --readiness-policy readiness.json --output-dir mcp-bundle

Both policies must explicitly allow direct execution. The exposure policy selects the capabilities and includes rest and mcp as appropriate. See Git sources for a complete acquisition example.

For each interface, resolve and download the server wheels using the target Python image/platform, then create the lock. This preparation may access an index; the subsequent build installs only the checked local wheel snapshot. Example for REST, replacing the digest with the base you reviewed:

base=python@sha256:caaf356f40667c496d405780745b9ac25771c189a51dfcc42430d531ea09f8a2
platform=linux/amd64
mkdir rest-wheels
docker pull --platform "$platform" "$base"
docker run --rm --user "$(id -u):$(id -g)" --env HOME=/tmp --platform "$platform" \
  --mount "type=bind,src=$work/rest-wheels,dst=/wheels" \
  --mount "type=bind,src=$work/rest-bundle/requirements.txt,dst=/requirements.txt,readonly" \
  "$base" python -m pip download --only-binary=:all: --dest /wheels -r /requirements.txt
core/bin/python lock_wheels.py rest-wheels rest.lock

Use mcp-bundle/requirements.txt, mcp-wheels and mcp.lock for MCP. Do not use macOS wheels in a Linux image. pip performs the resolution and compatibility checks. The resolved server plus declared application dependency closure must equal the lock; unrelated packages are refused. For an application bundle, concatenate requirements.txt and application-requirements.txt as the input to this same explicit wheel preparation. The generated requirements.txt remains the canonical server-only contract. Resources are copied from the verified bundle, never from the original project. Installations require hashes, no index, no source builds and no network in Dockerfile RUN instructions. Base-image resolution may still contact its registry even when layers are cached; --network=none does not prevent that. The build operation does not accept registry credentials or private base images.

Build and run

Managed image construction now needs an explicit operator build grant, binding the installed plugin and locked dependencies to the exact base digest, interface, platform, input paths, Docker parameters and local output tag. Both image.build and registry.read are required. Choose the policy yourself; installation, activation, signing and publication grants do not authorize a build. The core refuses before starting the plugin or reading construction inputs. The complete operator.json example includes distinct build, signing and publication rules; replace its illustrative identities and paths with reviewed values. Input references do not establish their bytes or predict inputs_sha256; the builder retains its snapshot and integrity checks.

A complete build.json (replace the absolute paths with your prepared paths):

{
  "schema": "apizr.oci-build/v1",
  "bundle": "/tmp/apizr-example/rest-bundle",
  "interface": "rest",
  "base_image": "python@sha256:caaf356f40667c496d405780745b9ac25771c189a51dfcc42430d531ea09f8a2",
  "platform": "linux/amd64",
  "tag": "apizr-service:rest-example",
  "requirements": "/tmp/apizr-example/rest.lock",
  "wheelhouse": "/tmp/apizr-example/rest-wheels",
  "docker": {
    "executable": "/usr/bin/docker",
    "socket": "/var/run/docker.sock",
    "buildx": null
  },
  "timeout_ms": 300000,
  "max_log_bytes": 1048576
}

buildx: null uses Docker's system-installed Buildx. When it is not installed system-wide, pass its absolute executable path, for example /Applications/Docker.app/Contents/Resources/cli-plugins/docker-buildx with Docker Desktop. Its user socket is usually $HOME/.docker/run/docker.sock. The build uses a fresh Docker configuration; it does not load user contexts, credential helpers, authentication headers or inherited DOCKER_* variables. Only the explicit binary, Buildx and socket are used. TCP/SSH Docker endpoints are not supported in this pass.

core/bin/apizr plugins run outerspace-apizr-oci build --arguments build.json \
  --operator-policy operator.json \
  --timeout-ms 360000 --plugins-dir "$work/plugins"
docker run --rm --publish 127.0.0.1:8000:8000 apizr-service:rest-example
curl --fail -H 'Content-Type: application/json' \
  -d '{"a":2,"b":3}' http://127.0.0.1:8000/capabilities/calculator.add

For MCP, set interface to mcp, use its bundle/lock/wheelhouse and a different tag, then build the same way. Start it with docker run --rm --interactive TAG (no TTY): it speaks MCP stdio. The plugin and Docker build logs never share the service's protocol stdout. REST binds 0.0.0.0:8000; both images run as numeric user 65532:65532 without a mounted Docker socket. Business code is loaded only when the generated service starts, with its existing bundle integrity checks.

The outer apizr.extension/v1 response contains result.tag, platform, image_id, inputs_sha256 and published: false. BuildKit's metadata and Docker inspection must agree before success. image_id is the local Engine identity (classic and containerd stores differ); it is not a claim about a manifest published in a registry. inputs_sha256 hashes the canonical path/hash map of private build inputs, including wheels, bundle, lock, generated Dockerfile and target. It does not promise bit-reproducible Docker layers or attest provenance.

New 0.4.1 builds also return delivery_plan, delivery_manifest and delivery_manifest_digest. Copy the complete delivery_manifest object into push arguments for these images. The plan digest is checked in sh.outerspace.apizr.delivery-plan-sha256, alongside the existing inputs label. Historical unlabeled images retain the older request form shown below. See delivery identities for the pre-build/observed boundary, canonical schemas and compatibility.

Limits and cancellation

Only direct repository bundles are accepted. The plugin calls validate_bundle, never load_bundle, during preparation. It copies only canonical declared files, not an entire directory, and ignores unrelated Dockerfiles, .git, .env and SSH files. Declared symlinks, path traversal and special files are refused. A bundle is limited to 4,096 declared files / 64 MiB total, its manifest to 1 MiB. The existing lock limits apply: 64 KiB lock, 128 wheels, 64 MiB per wheel, 256 MiB total compressed and 512 MiB total expanded. Prepared private bytes, not mutable source paths, reach Docker.

Plugin build duration defaults to 300,000 ms and is limited to 540,000 ms. Client stdout/stderr share a 1 MiB default budget (configurable to at most 16 MiB) and are counted while read. plugins run --timeout-ms accepts 1–600,000 ms and keeps its existing 10,000 ms default; allow headroom for startup, preparation and cleanup. The plugin's temporary context lives under the extension runtime's owned working directory, so runtime interruption removes it even when the plugin is killed. The Python build(..., workspace=...) API requires caller-owned scratch storage; use the existing extension runtime for process-group ownership and cancellation.

Killing the Docker client does not prove that daemon work stopped. A timed-out or interrupted call returns no successful image result. A daemon build, cache or unreported image may remain, including a tag assigned just before interruption. No global prune or deletion of previous user images occurs. Use disposable Docker runners for build tests and inspect the explicitly chosen tag before retrying. This mechanism is not a sandbox or a daemon resource quota. Operator authorization also does not constrain daemon mirrors or redirects.

The proof script installs both packages outside the checkout, acquires a real HTTPS Git fixture, builds and calls REST/MCP after removing sources and bundles, interrupts after an explicit Docker progress handshake, and compares all core files/distributions. The dedicated CI runner preserves its results, locks and build inputs. In this script's default build-only mode, no image is published; only named test containers/images are removed. The separate publication proof is described below.

References: Docker build metadata and network semantics, pip hash-checked installs.

Publish a verified service image

The same installed plugin accepts push. It never rebuilds the image, imports its sources or installs dependencies. Keep the complete build result, including image_id, platform and inputs_sha256; build still returns published:false.

Prepare a dedicated Docker authentication file outside the project, readable only by your user. This first version accepts exactly one auths entry, keyed by the exact registry hostname and optional port. Its only field is auth: the base64 encoding of username:password-or-token. Base64 is not encryption. Credential helpers, identity-token records, other registries and other Docker configuration keys are refused. For docker.io (or its index.docker.io alias), the selected record is copied under Docker's historical https://index.docker.io/v1/ key in the private configuration. Apizr never performs docker login or modifies your Docker configuration. Do not commit this file or print its contents.

With the identity values from your build, a complete /work/push.json is:

{
  "schema": "apizr.oci-push/v1",
  "image_id": "sha256:aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
  "platform": "linux/amd64",
  "inputs_sha256": "bbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb",
  "destination": "registry.example.com:5443/services/calculator:0.4-test",
  "docker": {
    "executable": "/usr/bin/docker",
    "socket": "/var/run/docker.sock",
    "buildx": "/usr/libexec/docker/cli-plugins/docker-buildx"
  },
  "authentication": {
    "config_file": "/work/credentials/registry-auth.json",
    "ca_file": "/work/credentials/registry-ca.pem"
  },
  "timeout_ms": 300000,
  "max_log_bytes": 1048576
}

Replace the example digests and absolute paths with your actual build result and Docker installation. ca_file is optional for a registry using a publicly trusted certificate. A supplied PEM file adds explicit trust for Docker's registry clients; it never disables certificate or hostname validation. The explicitly selected Docker daemon must independently trust the registry CA. Configure that trust before invocation; the plugin does not modify the daemon. Daemons with explicitly insecure registries or non-default insecure CIDRs are refused. The daemon and its network configuration remain trusted prerequisites; do not resolve registry names to the daemon's implicitly insecure loopback network.

apizr plugins run outerspace-apizr-oci push --arguments /work/push.json \
  --operator-policy /work/operator.json --timeout-ms 360000

Create an explicit operator policy for this installed build and exact repository first. Activation alone cannot authorize publication. The core requires both registry read and publish permissions before launching the plugin.

The Python API is apizr_oci.push(PushRequest.model_validate(document), workspace=owned_directory, cancel=event), inside the installed plugin environment. From the core, use apizr.local_plugins.run_extension with the explicit operator_policy; it applies the same admission check as the CLI. Calling the plugin API directly is outside managed authorization.

Publication requires Docker Engine API 1.46+ and Buildx. Destination references must include a DNS registry name (optionally a port), a namespace, an image and an explicit tag. IP literals, URL schemes, credentials in references and implicit latest are not accepted. There is no authentication fallback.

Identity and publication states

The local image is inspected by its immutable ID; its platform, non-root user and Apizr input label must match. Docker's upload command requires a tag, so the plugin creates a fresh apizr-upload-<random> staging alias from that ID, uploads it, and verifies its remote identity before promoting its digest with Buildx. Moving the original build tag cannot change the selected image. Staging tags can remain locally and remotely, including after interruption. No remote deletion is attempted.

An existing destination is accepted only when it identifies the expected image. A different image is refused. Only Docker's exact manifest-not-found diagnostic is accepted as absence; authorization, certificate, network and other errors fail closed. The tag is checked again immediately before promotion. These checks are not a registry lock: another writer can race them or later change the tag. Use registry-enforced immutable tags or exclusive write permissions when needed.

The versioned apizr.oci-push-result/v1 result includes:

  • destination: the requested tag;
  • digest_reference: registry/namespace/image@sha256:..., usable for pulling;
  • image_id: the requested immutable local ID;
  • config_digest: the remote image configuration digest;
  • manifest_digest: the verified single-platform manifest digest;
  • index_digest: null (indexes and multiarchitecture publication are refused);
  • platform, inputs_sha256 and published:true.

Classic Docker uses a configuration digest as the local ID; containerd-backed Docker can use a manifest digest. These identities are checked separately. The plugin validates Docker's structured manifest response and its raw-byte SHA-256, then verifies both the destination and digest-pinned retrieval reference. It reports published:true only after all checks succeed.

Any failure after upload starts produces remote_state_unconfirmed in the plugin protocol/Python API. The core CLI deliberately redacts plugin failures to plugin_failed; a CLI failure is not evidence that nothing was published. Cancellation also cannot prove that the daemon stopped or that the registry rolled back a transfer. Inspect the registry before deciding what to do next. No rollback or deletion is promised, and no logs or credentials are returned as diagnostics.

Disposable integration proof

uv run --locked python scripts/smoke_oci_registry.py --output /tmp/apizr-registry-proof

This requires Docker with privileged disposable containers. It creates an isolated network, a fresh authenticated HTTPS registry, a dedicated certificate, and two independent Docker daemons. It installs the core and plugin wheels outside the checkout, builds and publishes REST/MCP services, pulls by digest into the second daemon, removes the sources and bundles, and calls both services. It compares the core files and distributions before and after. Only the fixture's own resources are removed. Certificate keys and credentials stay in its disposable volume and are excluded from retained proof artifacts. Image/base/package downloads occur only as explicit fixture preparation; test pushes target only this local registry.

Docker semantics used here are documented in image push, manifest inspect and Buildx imagetools create.
